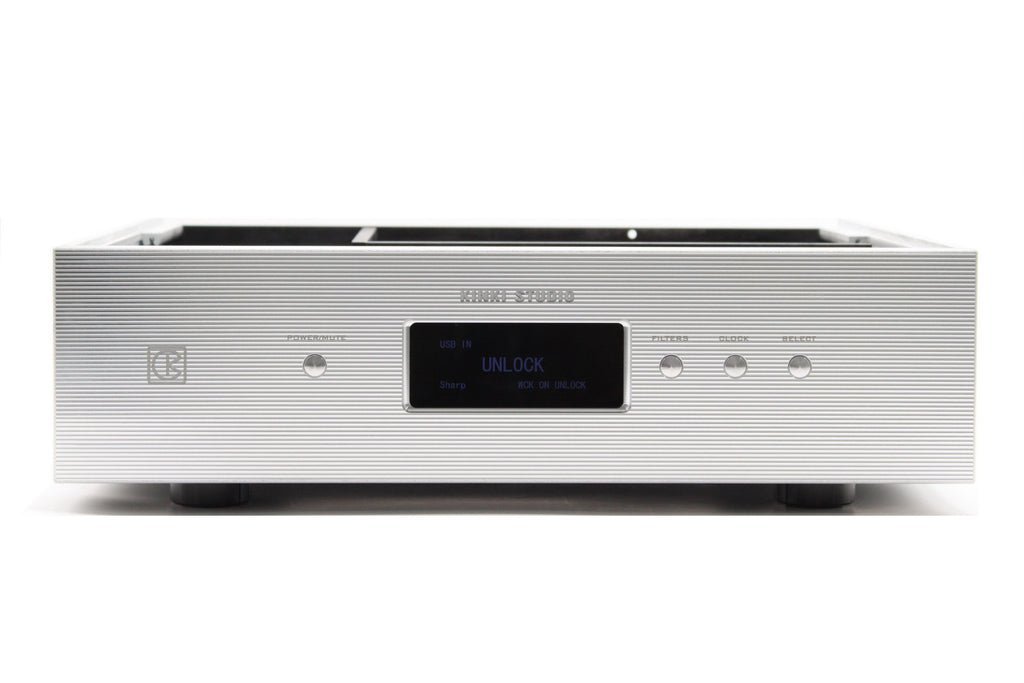

Kinki Studio - VISION DAC-1 digital to analogue converter
VISION DAC-1 is a Balanced DAC, equipped with a single AKM high-performance, high sound quality digital audio chip AK4495, with built-in XMOS XU208 USB interface, FEMTO clock, dedicated Word Clock input, supports up to 32/384k, DSD128 via USB, and 24/192k and DoP DSD64 via SPDIF.
VISION DAC-1 is a Balanced DAC, equipped with a single AKM high-performance, high sound quality digital audio chip AK4495, with built-in XMOS XU208 USB interface, FEMTO clock, dedicated Word Clock input, supports up to 32/384k, DSD128 via USB, and 24/192k and DoP DSD64 via SPDIF.
VISION DAC-1 is a Balanced DAC, equipped with a single AKM high-performance, high sound quality digital audio chip AK4495, with built-in XMOS XU208 USB interface, FEMTO clock, dedicated Word Clock input, supports up to 32/384k, DSD128 via USB, and 24/192k and DoP DSD64 via SPDIF.
Technical specification
DSD: DSD64 (2.8224MHz), DSD128 (5.6448MHz)
PCM: 44.1, 48, 176.4, 192, 384, 768KHz
Sampling Rate: PCM 32/384KHz, DSD128/5.6448Mhz
S/N Ratio: 116db
Dynamic Range: 122dbA
THDN%: 0.008% @ 2Vrms
Frequency Response: 3-150KHz (0-3db)
Input: Coax, BNC, AES/EBU, USB
Output: RCA (3Vrms), XLR (6Vrms)
WCLK: BNC Word Clock Input
Dimension & Weight
Dimension: 430W x 90H x 330D
Weight: 11KG
